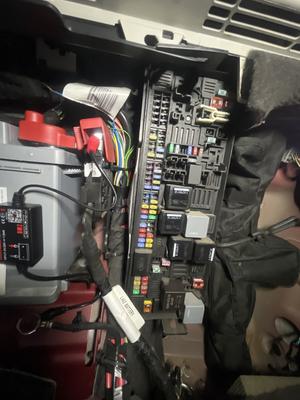

Wife came back in car , and is it me or is it missing a relay ????
-
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
-
- Mole HD
- Member Since: 18 Nov 2024
- Location: Orkney Islands
- Posts: 444
Dazz360 wrote:
Wife came back in car , and is it me or is it missing a relay ????
Certainly looks like it...could that be the one for the FBH perhaps? I wish I could get out to mine so I could check against that photo...definitely a no go till this storm has passed. I'd end up being blown over to Norway...it's wild and getting worse
Last edited by Mole HD on 4th Oct 2025 7:15 pm. Edited 1 time in total -
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
-
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
Mole HD wrote:
Dazz360 wrote:
Wife came back in car , and is it me or is it missing a relay ????
Certainly looks like it...could that be the one for the FBH perhaps? I wish I could get out to mine so I could check against that photo...definitely a no go till this storm has passed. I'd end up being blown over to Norway...it's wild and getting worse
When you do get chance please post a pic of the actual relay so I can get one please mole -
- Mole HD
- Member Since: 18 Nov 2024
- Location: Orkney Islands
- Posts: 444
-
It's really hard to tell...could have been a previous issue and a fix by some indy garage mechanic...or it might be nothing at all.
Even checking yours against mine, we've both got the same 2017 year of manufacture...but yours is an HSE lux and mine is an HSE. Could well be some differences in that rear panel due to you having the rear entertainment, electric sunroof, cabin mood lighting etc that I don't have...
I'd stick to why the FBH isn't working as a first port of call before we go comparing pics of rear fuseboxes...but of course I'll do the pic thing once this storm has blown over
-
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
Dazz360 wrote:
I’ve found this
Is the junction box central the fuse board in the boot ?
Thing is this is part of the fuel burner -
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
-
- Mole HD
- Member Since: 18 Nov 2024
- Location: Orkney Islands
- Posts: 444
-

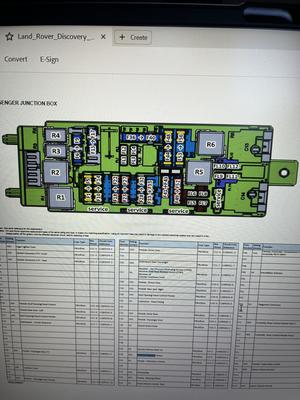

The junction box central should be the passenger compartment...assuming the engine compartment is the front and the boot (RJB) being the rear one.
In the passenger compartment fusebox...like we talked about yesterday... the 5amp fuse covering the FBH is F27 on that board. The diagram doesn't assign values to any of the relays in there though.
Fuse F27 covers the FBH, TPMS and the front of the roof console....I can safely assume that neither your TPMS nor the roof console have any issues, so that would rule that fuse out.
I'm still none the wiser as to what the relays in that fuse panel cover...I can find no listings for relay functions for any of the fuse panels at all. So, unless it's clearly marked on the individual fuse box covers...I've no idea what they do -
- Mole HD
- Member Since: 18 Nov 2024
- Location: Orkney Islands
- Posts: 444
-
-
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
-
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
Dazz360 wrote:
Dazz360 wrote:
I’ve found this
Is the junction box central the fuse board in the boot ?
Thing is this is part of the fuel burner

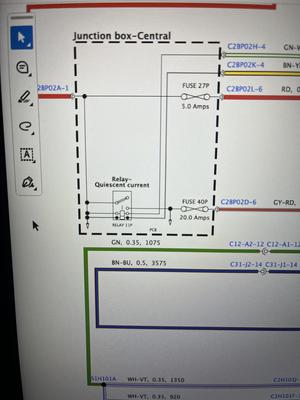

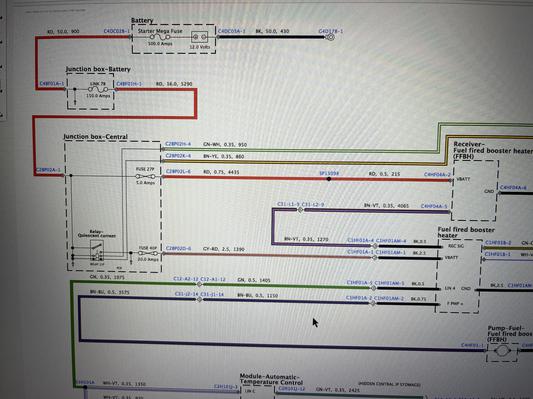

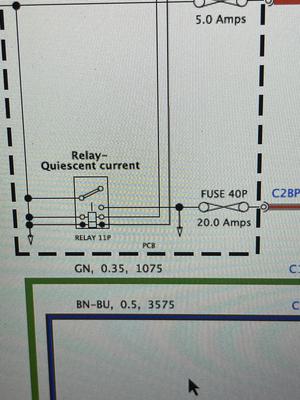

This diagram shows fuse 27 5amp
And fuse 40 20amp and this relay so to me it must be the passenger fuse box -
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
-
- Dazz360
- Member Since: 07 Aug 2025
- Location: Walsall
- Posts: 133
-
I’ll check relay 1 on the passenger this time, clean it and see what happens
Also my relay tester will be here tomorrow
-
- Mole HD
- Member Since: 18 Nov 2024
- Location: Orkney Islands
- Posts: 444
-
Normal rules apply then...check at the plug if it's getting power (12v) when it's switched on, if it's got power and it's not running...it's mechanical...or an internal electrical fault within the FBH itself.
Then we can go looking for why it's not got any power if there's nothing at the plug... if that's the case
Last edited by Mole HD on 4th Oct 2025 10:15 pm. Edited 1 time in total
